すべての製品
-
Manu梱包機機械は非常によく働く。 -
Ankitあなたの梱包機は非常によく、よく働く。屑鉄のベールは大きい。

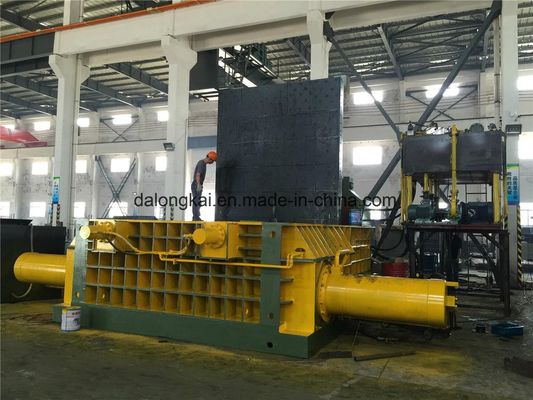

Y81K-315 Hydraulic Scrap Baler Machine with 315 Ton Force 3500x3000x1300mm Press Box and Customizable Bale Size for High Productivity
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル番号 | Y81K-315 | 主要なCyl.Force | 315トン |
|---|---|---|---|
| ボックスサイズを押します | 3500*3000*1300（mm） | ベールサイズ | 600*600（mm） |
| ベール重量 | 600〜1000（kg） | モーターパワー | 90 （kw） |
| 公称力 | 125トン〜1200トン | 駆動型タイプ | 油圧 |
| 電力範囲 | 15kw〜270kw | 電圧 | 21.5MPA |
| 自動グレード | 半自動 | 生産能力 | 5セット/月 |
| 押出力 | 63トンから400トン | 生産性 | 4トン/シフト40トン/シフト |
| 排出タイプ | ひっくり返し、押し出し、転送、手動の持ち上げ | ||
| ハイライト | 315 Ton Hydraulic Scrap Baler,3500x3000x1300mm Metal Baler Machine,Customizable Bale Size Scrap Copper Baler |
||
製品の説明
Y81K-315 Hydraulic Scrap Copper Baler Machine
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. These bales can be formed into square columns, cylinders, octagons, and other shapes to optimize transportation, reduce costs, and improve logistics efficiency.
Ideal for steel plants, recycling facilities, and metal processing industries, this baler offers hydraulic drive systems with optional manual or PLC automatic controls. Multiple discharge methods are available including turning over, pushing out, forwarding out, and manual lifting.
Key advantages include no need for fixed foot screws and the option to operate with a diesel engine when electrical power is unavailable. With extrusion forces ranging from 63 to 400 tons across 10 models, productivity varies from 4 to 40 tons per shift. Both compression chamber dimensions and bale specifications can be customized to meet specific requirements.
Product Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Overseas engineer support available |
Technical Specifications
| Model | Main Cyl.Force (ton) | Press Box Size (mm) | Bale Size (mm) | Bale Weight (kg) | Motor (KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
