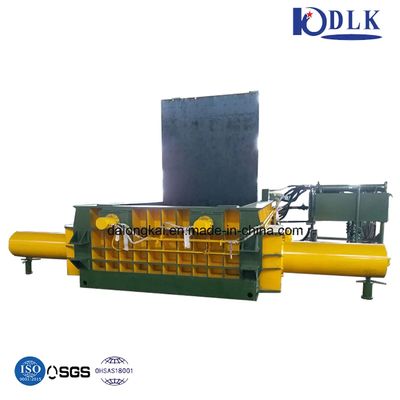

Y81K-315 Hydraulic Scrap Metal Compactor with 600x600mm Bale Size 3000x2500x1200mm Press Box and 400-700kg Bale Weight
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル番号 | Y81K-315 | タイプ | 屑鉄の梱包機 |
|---|---|---|---|
| オートメーション | 半自動 | 主要なCyl.Force | 315トン |
| ボックスサイズを押します | 3000*2500*1200（mm） | ベールサイズ | 600*600（mm） |
| ベール重量 | 400〜700（kg） | モーターパワー | 90 （kw） |
| 公称力 | 125トン〜1200トン | 駆動型タイプ | 油圧 |
| 電圧 | 21.5MPA | 電力範囲 | 15kw〜270kw |
| 生産能力 | 5セット/月 | 圧縮チャンバー | カスタマイズ可能 |
| 排出タイプ | ひっくり返し、押し出し、転送、手動の持ち上げ | ||
| ハイライト | 600x600mm Bale Size Hydraulic Scrap Metal Compactor,3000x2500x1200mm Press Box Scrap Baler Machine,400-700kg Bale Weight Hydraulic Press Machine |
||
製品の説明
Y81K-315 Hydraulic Scrap Metal Compactor Machine
Product Overview
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. These uniform shapes (square, cylindrical, octagonal) optimize transportation, reduce costs, and improve handling efficiency.
Key Features
- Ideal for steel plants, recycling facilities, and metal processing industries
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No foundation bolts required for installation
- Diesel engine compatible for locations without power supply
- Customizable compression chamber and bale dimensions
- Extrusion force range: 63 to 400 tons (10 available grades)
- Productivity range: 4 to 40 tons per shift
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa (Customizable) |
| Color | Customizable |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Technical Parameters
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
Product Images
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free for manufacturer defects. For user-caused issues, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin city, Jiangsu province, China (214429), near Shanghai Pudong Airport. We provide airport pickup and can assist with hotel arrangements.
Q3: Are you a manufacturer or trading company?
We are a direct manufacturer with 20 years of experience, exporting 50-60% of our production.
Q4: How can I trust your company?
- Holding national patents and CE, ISO certifications
- Factory located near Shanghai Pudong Airport for easy inspection
- Specialized in hydraulic balers and shears for two decades
Q5: Is your price competitive?
We offer the best factory prices for our superior quality machines and comprehensive service package.
