Y81QF-250 Hydraulic Scrap Metal Baler with 2500x2000x1200mm Press Box and 600x600mm Bale Size for 300-500Kg Scrap Recycling
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル番号 | Y81QF-250 | タイプ | 屑鉄の梱包機 |
|---|---|---|---|
| オートメーション | 半自動 | 主要なCyl.Force | 250トン |
| ボックスサイズを押します | 2500*2000*1200 （mm） | ベールサイズ | 600*600（mm） |
| ベール重量 | 300〜500（kg） | モーターパワー | 60 (kw) |
| パワータイプ | 水力駆動装置 | 主要なオイル シリンダー | YG340/220、2pc |
| サイド圧力シリンダー | YG240/160、2pc | バッグシリンダーを回します | YG140/75、1pc |
| ドアカバーシリンダー | YG240/160、1pc | クーラーモデル | GLC-12m² |
| 油圧 | ≤26MPa | ||
| ハイライト | 2500x2000x1200mm Hydraulic Scrap Metal Baler,600x600mm Scrap Baling Machine,300-500Kg Metal Recycling Baler |
||
製品の説明

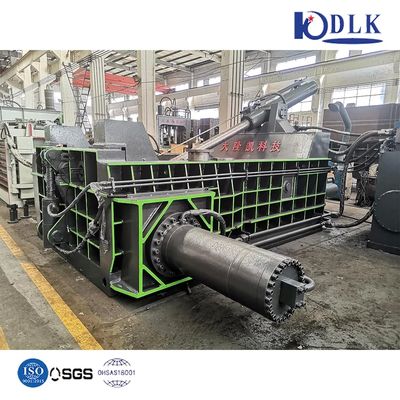

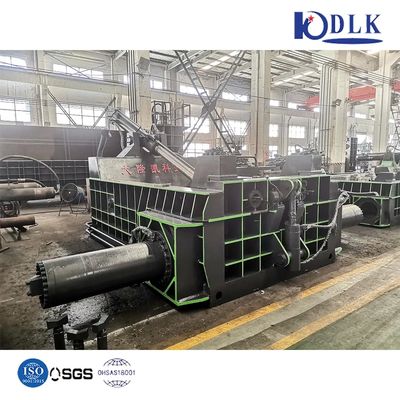

Y81qf-250 Hydraulic Scrap Metal Baling Recycling Machine
Product Description
The Y81 series hydraulic metal baler utilizes the plastic deformation properties of metal materials under external force to create tightly packed bales. This industrial-grade machine is primarily used in scrap metal recycling yards, steel mills, and metal processing facilities.
Key Features
- Hydraulic drive system with compact, sealed design
- Customizable press box and bale dimensions
- Multiple bale discharge options: turn-out, side-push out, and forward-out
- High-efficiency quick unit for improved productivity
- Premium components including motors, hydraulic systems, and electrical parts
Technical Specifications
| Parameter | Details |
|---|---|

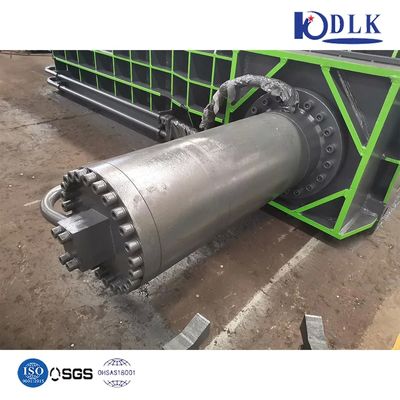

| Main Oil Cylinder | Model: YG340/220 (2pc), Normal force: 2500KN, Stroke: 730mm |
| Side Pressure Cylinder | Model: YG240/160 (2pc), Normal force: 1100kN*2, Stroke: 2070mm |
| Turning Bag Cylinder | Model: YG140/75 (1pc), Normal force: 120kN, Stroke: 1900mm |
| Door Cover Cylinder | Model: YG240/160 (1pc), Normal force: 1100kN, Stroke: 320mm |
| Cooling System | Cooler: GLC-12m² (12 m²), Cooling Tower: LJR-20L (0.55kW) |

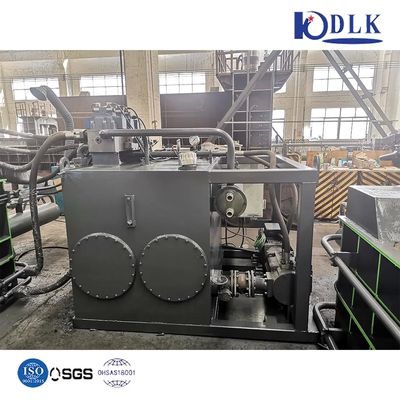

| Hydraulic System | Working pressure ≤26MPa |
| Compression Chamber | 2500x2000x1000mm |
Note: Specifications are for reference only and may be customized.
Applications
This horizontal metal baler is ideal for factories of all sizes, metal recycling operations, and non-ferrous metal smelting industries. It efficiently processes various metal scraps including steel shavings, scrap steel, aluminum, and copper into compact cubes, cylinders, or octagons, significantly reducing transportation and smelting costs.
About Manufacturer
Dalongkai Technology Co., Ltd. specializes in developing hydraulic machinery for the scrap metal recycling industry. We are committed to advancing renewable resources and environmental protection through our high-quality metal balers and shears, designed to maximize your operational efficiency and profitability.
