Manu梱包機機械は非常によく働く。 -
Ankitあなたの梱包機は非常によく、よく働く。屑鉄のベールは大きい。

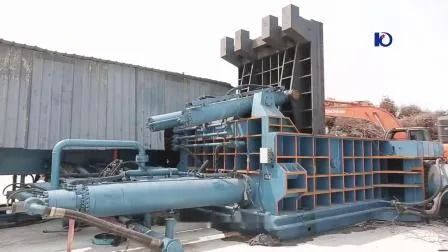

Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル番号 | Y81F-200 | 主要なCyl.Force | 200トン |
|---|---|---|---|
| ボックスサイズを押します | 1800*1400*900（mm） | ベールサイズ | 400*400（mm） |
| ベール重量 | 130〜180（kg） | モーターパワー | 44（kw） |
| 公称力 | 125トン〜1200トン | 駆動型タイプ | 油圧 |
| 電圧 | 21.5MPA | 自動グレード | 半自動 |
| 生産能力 | 5セット/月 | 押出力 | 63トンから400トン |
| 生産性 | 4トン/シフト40トン/シフト | 電源 | ディーゼルエンジンオプション |
| 排出タイプ | ひっくり返し、押し出し、転送、手動の持ち上げ | ||
| ハイライト | Y81F-200 Hydraulic Baling Press,1800x1400x900mm Scrap Baler Machine,400x400mm Metal Scrap Baler |
||
製品の説明
Y81f-200 Steel Shaving Baling Press Machine
Product Overview
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. This machine reduces transportation costs, improves logistics efficiency, and is ideal for steel plants, recycling facilities, and metal processing industries.
Key Features
- Hydraulic operation with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for areas with unreliable power supply
- Customizable compression chamber and bale dimensions
- Extrusion force from 63 to 400 tons (10 available grades)
- Productivity ranging from 4 to 40 tons per shift
Technical Specifications
| Attribute | Value |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa (Customizable) |
| Color | Customizable |
| Automatic Grade | Semi-Automatic |
Model Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
Commercial Terms
| Term | Detail |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |

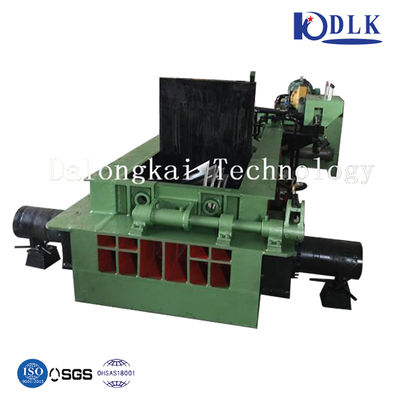

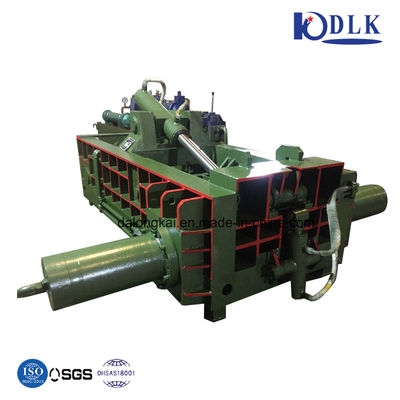

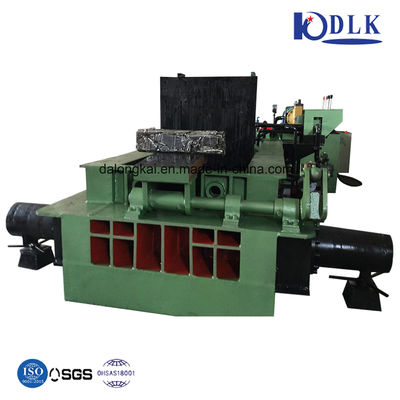

Product Images
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by manufacturing defects. For user-caused issues, spare parts are available at cost. Direct technical support is always available.
Q2: Can I visit your factory before ordering?
Visitors are welcome at our factory located at 29# Panlongshan Road, Jiangyin city, Jiangsu province (214429), China. We're conveniently located near Shanghai Pudong Airport and can arrange airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with 20 years of experience, exporting 50-60% of our production.
Q4: How can I trust your company?
Our credentials include:
- Third-party assessed national patents and CE, ISO certifications
- Open factory inspection policy
- 20 years of specialization in hydraulic balers and hydraulic shears
Q5: Is your price competitive?
We offer the best factory price for our high-quality machines, balancing superior product performance with excellent service.
