Manu梱包機機械は非常によく働く。 -
Ankitあなたの梱包機は非常によく、よく働く。屑鉄のベールは大きい。

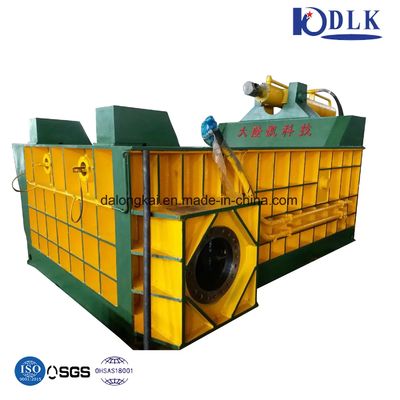

Y81F-250 Scrap Baler Machine with 2000*1400*900mm Press Box and 500*500mm Bale Size for Metal Recycling
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル番号 | Y81F-250 | 主要なCyl.Force | 250トン |
|---|---|---|---|
| ボックスサイズを押します | 2000*1400*900（mm） | ベールサイズ | 500*500ミリ |
| ベール重量 | 200〜400（kg） | モーターパワー | 44（kw） |
| 制御システム | マニュアルかPLC | 公称力 | 125トン〜1200トン |
| 駆動型タイプ | 油圧 | 電力範囲 | 15kw〜270kw |
| 電圧 | 21.5MPA | 自動グレード | 半自動 |
| 生産能力 | 5セット/月 | 押出力 | 63トンから400トン |
| 生産性 | 4トン/シフト40トン/シフト | ||
| ハイライト | Y81F-250 Scrap Baler Machine,2000*1400*900mm Press Box Scrap Baler,500*500mm Bale Size Hydraulic Metal Baler |
||
製品の説明

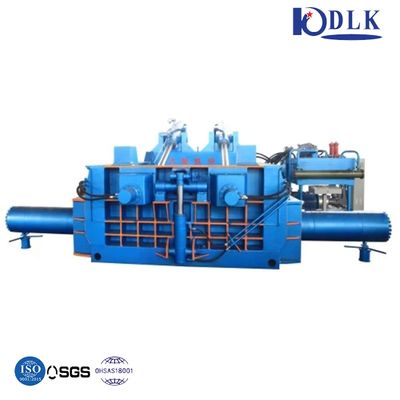

Y81f-250 Scrap Stainless Steel Baler Machine
Product Overview
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. This process reduces transportation costs and increases efficiency by producing uniform shapes like square columns, cylinders, and octagons.
Key Features
- Hydraulic operation with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for areas without power supply
- Customizable compression chamber and bale sizes
- Extrusion force from 63 to 400 tons (10 available grades)
- Productivity range: 4-40 tons per shift
Applications
Ideal for steel plants, recycling facilities, processing industries, and nonferrous/ferrous metal refining operations.
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10set /month |
| Delivery Time | As your requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Detailed Technical Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
Manufacturer Information
Jiangsu Dalongkai Technology Co., Ltd.
Frequently Asked Questions
Q1: How can I get after-service support?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by us. For man-made problems, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
Yes, we welcome visits to our factory at: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We're near Shanghai Pudong Airport and can provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% of production for export.
Q4: How can I trust your company?
With 20 years of professional design experience, we offer suitable suggestions and competitive pricing. We hold national patents and CE, ISO certifications. Our factory is open for inspection near Shanghai Pudong airport. We specialize in hydraulic balers and shears.
Q5: Is your price competitive?
We supply only high-quality machines at the best factory prices, backed by superior products and service.
