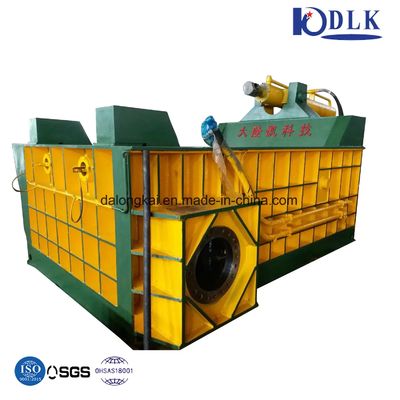

Y81K-315 Hydraulic Scrap Press Machine with 3000*2500*1200mm Press Box and 600*600mm Bale Size
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル番号 | Y81K-315 | 主要なCyl.Force | 315トン |
|---|---|---|---|
| ボックスサイズを押します | 3000*2500*1200（mm） | ベールサイズ | 600*600（mm） |
| ベール重量 | 400〜700（kg） | モーターパワー | 90 （kw） |
| 駆動型タイプ | 油圧 | 電圧 | 21.5MPA |
| 自動グレード | 半自動 | 生産能力 | 5セット/月 |
| 公称力 | 125トン〜1200トン | 電力範囲 | 15kw〜270kw |
| 排出タイプ | ひっくり返し、押し出し、転送、手動の持ち上げ | 押出力 | 63トンから400トン |
| 生産性 | 4トン/シフト40トン/シフト | ||
| ハイライト | Y81K-315 Hydraulic Scrap Press Machine,3000*2500*1200mm Scrap Baler Machine,600*600mm Metal Baler Machine |
||
製品の説明
Y81K-315 Hydraulic Stainless Steel Scrap Press Machine
Product Overview
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. This machine transforms materials into uniform shapes (square columns, cylinders, octagons) to optimize transportation, reduce costs, and improve handling efficiency.
Key Features
- Ideal for steel plants, recycling centers, and metal processing industries
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for locations without power supply
- Extrusion force from 63 to 400 tons (10 available grades)
- Productivity range: 4-40 tons per shift
- Fully customizable compression chamber and bale dimensions
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa (Customizable) |
| Color | Customizable |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Detail |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Detailed Technical Parameters
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |

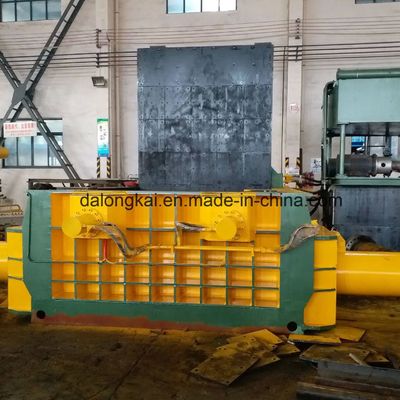

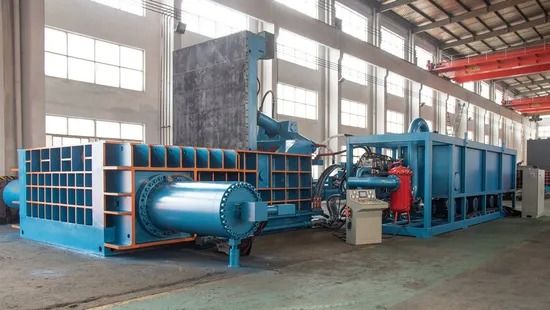

Product Images
Factory & Certifications
Frequently Asked Questions
Q1: How can I get after-sales service?
A: We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by us. For man-made issues, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
A: Yes, we welcome factory visits. Our address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, China. We're near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
A: We're a manufacturer with our own factory operating for 20 years, with 50-60% of production for export.
Q4: How can I trust your company?
A: With 20 years of professional design experience, we offer:
1. Third-party assessed national patents and CE, ISO certifications
2. Open for factory inspections anytime
3. Specialized in hydraulic balers and shears
Q5: Is your price competitive?
A: We only supply high-quality machines at the best factory price, backed by superior products and service.
