Y81K-315 Scrap Metal Baling Press Machine with 3500*3000*1300mm Press Box 600*600mm Bale Size and 600~1000Kg Bale Weight
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル番号 | Y81K-315 | タイプ | 屑鉄の梱包機 |
|---|---|---|---|
| オートメーション | 半自動 | 主要なCyl.Force | 315トン |
| ボックスサイズを押します | 3500*3000*1300（mm） | ベールサイズ | 600*600（mm） |
| ベール重量 | 600〜1000（kg） | モーター | 90 （kw） |
| パワータイプ | 油圧 | 公称力 | 125トン〜1200トン |
| 力 | 15kw〜270kw | 電圧 | 21.5MPA |
| 自動グレード | 半自動 | 生産能力 | 5セット/月 |
| 駆動型タイプ | 油圧 | ||
| ハイライト | 3500*3000*1300mm Scrap Metal Baling Press Machine,600*600mm Scrap Baler Machine,600~1000Kg Hydraulic Metal Baler |
||
製品の説明

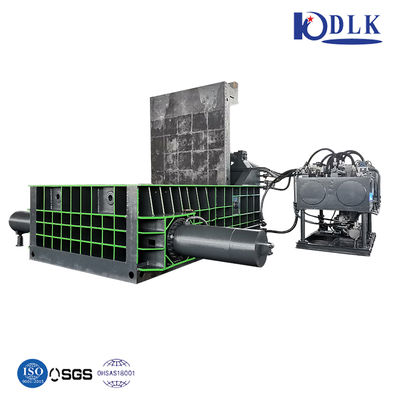

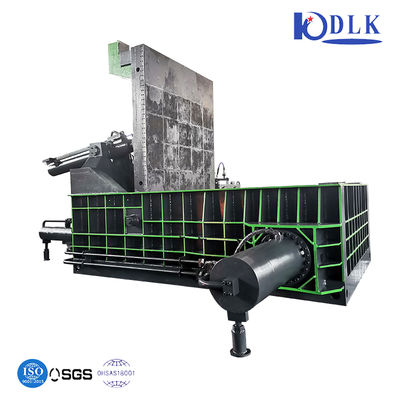

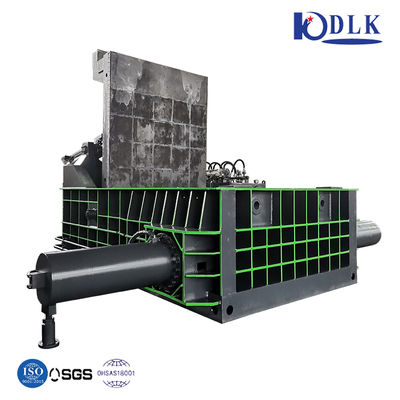

Y81K-315 Scrap Metal Baling Press Machine
Product Overview
The Y81 series hydraulic metal baler efficiently processes various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. This machine reduces transportation costs while increasing efficiency by producing uniform bales in shapes like square columns, cylinders, and octagons.
Key Features
- Ideal for steel plants, recycling centers, and metal processing industries
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for foot screw fixing - ready for immediate operation
- Diesel engine compatible for locations without power supply
- Extrusion force ranges from 63 to 400 tons (10 available grades)
- Productivity from 4 to 40 tons per shift
- Fully customizable compression chamber and bale dimensions
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Detail |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Detailed Technical Parameters
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
Product Images
Certification
Frequently Asked Questions
Q1: How can I get the after-service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by us. For man-made problems, we still provide spare parts but at cost. You can contact us directly for any issues.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We're located near Shanghai Pudong Airport and can arrange airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% of our production for export.
Q4: How can I trust your company?
With 20 years of professional design experience, we offer suitable suggestions and competitive pricing:
- Third-party assessed with national patents and CE/ISO certifications
- Convenient factory location near Shanghai Pudong airport
- Specialized in hydraulic balers and shears with proven quality
Q5: Is your price competitive?
We guarantee high-quality machines and will provide the best factory price based on superior products and service.
