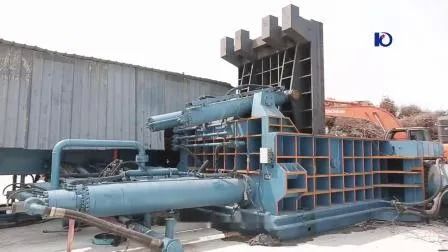

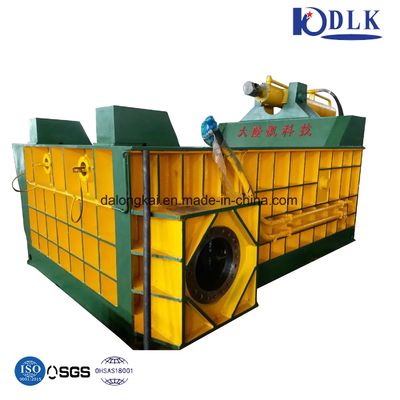

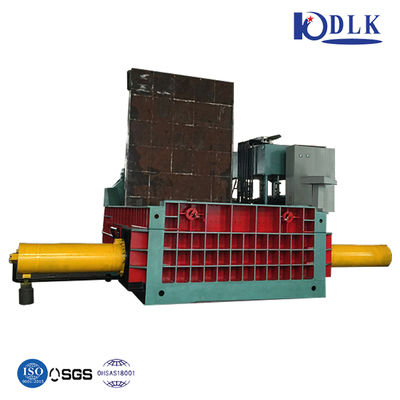

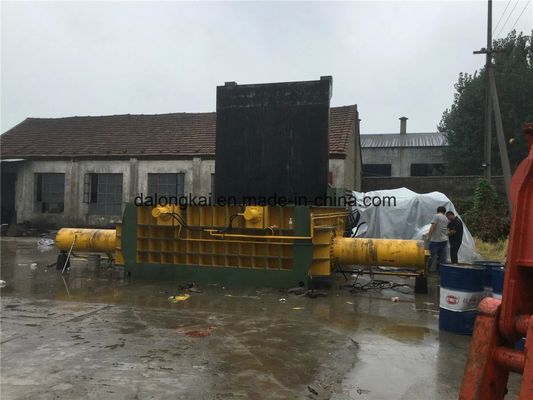

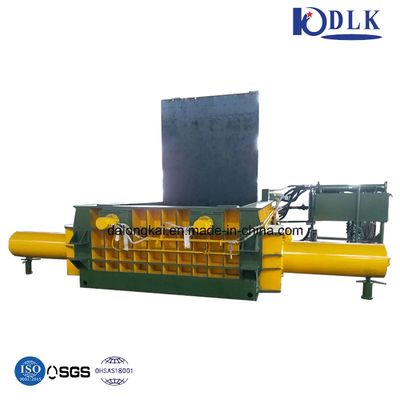

Y81K-400 400 Ton Hydraulic Scrap Metal Baler with 700x700mm Bale Size and 4000x3500x1300mm Press Box
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル番号 | Y81K-400 | 主要なCyl.Force | 400トン |
|---|---|---|---|
| ボックスサイズを押します | 4000*3500*1300（mm） | ベールサイズ | 700*700（mm） |
| ベール重量 | 800〜1200（kg） | モーターパワー | 135（kw） |
| 公称力 | 125トン〜1200トン | 駆動型タイプ | 油圧 |
| 電圧 | 21.5MPA | 自動グレード | 半自動 |
| 生産能力 | 5セット/月 | 押出力 | 63トンから400トン |
| 生産性 | 4トン/シフト40トン/シフト | 電源 | ディーゼルエンジンオプション |
| 排出タイプ | ひっくり返し、押し出し、転送、手動の持ち上げ | ||
| ハイライト | 700x700mm Bale Size Scrap Metal Baler,4000x3500x1300mm Press Box Hydraulic Baler Machine,135Kw Motor Metal Compress Machine |
||
製品の説明
Y81K-400 Scrap Metal Compress Hydraulic Machine
Product Overview
The Y81 series metal hydraulic baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales (square column, cylinder, octagon shapes) to reduce transportation costs and improve logistics efficiency.
Key Features
- Processes multiple metal types: steel, copper, aluminum, stainless steel, automotive scrap
- Creates uniform bales for optimized transportation and storage
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, manual lifting
- No foundation bolts required for installation
- Diesel engine compatible for areas with unreliable power supply
- Customizable compression chamber and bale dimensions
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Model Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
Commercial Terms
| Term | Detail |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10set/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Factory & Certification
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance.
Spare parts are provided free if problems are caused by manufacturing defects.
For user-caused issues, spare parts are available at cost. Direct technical support is always available.
Q2: Can I visit your factory before ordering?
Welcome to visit our factory at: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China.
We're near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with 20 years of experience, exporting 50-60% of our production.
Q4: How can I trust your company?
- Third-party assessed with national patents and CE, ISO certifications
- Factory inspections welcome - conveniently located near Shanghai Pudong airport
- 20 years specialization in hydraulic balers and shears
Q5: Is your price competitive?
We offer the best factory price for our superior quality machines and comprehensive service.
