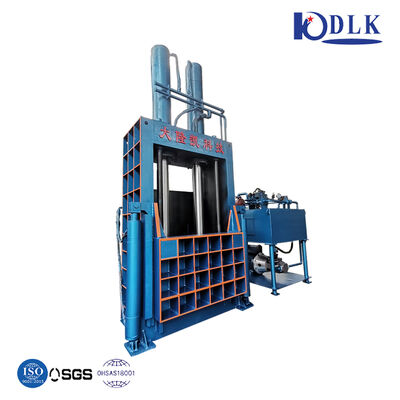

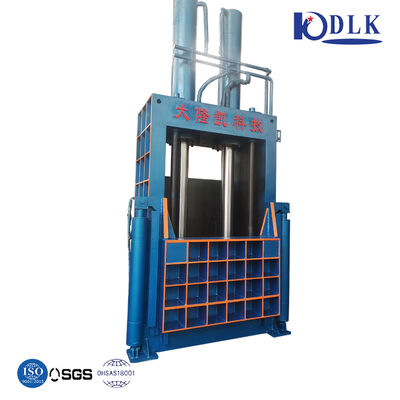

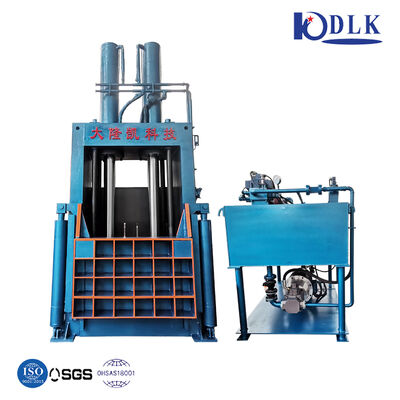

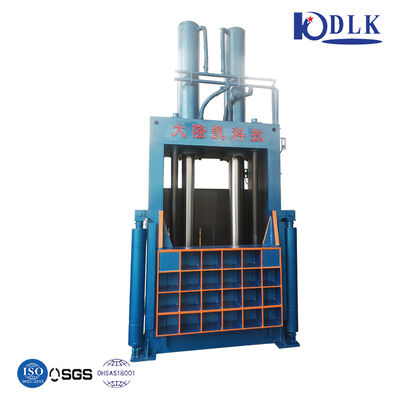

Y82-100 Computerized 100 Ton Hydraulic Vertical Baler Machine for Paper and Plastic Baling
商品の詳細
| モデル番号 | Y82-100 | 主要なCyl.Force | 100トン |
|---|---|---|---|
| プレスボックスのサイズ | 1100*700*1600(mm) | ベールセクション | 1100*700(mm) |
| 力 | 22 (kW) | 排出を梱包しなさい | 出勤量 |
| 構造 | 垂直 | 加工された材料 | ペットボトル |
| プラスチックタイプ | ペット | オートメーション | 非オートメーション |
| コンピュータ化された | コンピュータ化された | 生産能力 | 10セット/月 |
| 公称力 | 1000KN/100T | チャンバーサイズ | 1100*700*1600mm |
| 制御方法 | 液圧駆動 | ||
| ハイライト | 100 Ton Paper Baler Machine,Computerized Hydraulic Baler,Vertical Structure Baler |
||
製品の説明
Y82-100 Paper Hydraulic Vertical Baler Machine
Professional hydraulic baler designed for efficient compression and baling of various materials.
Applications
- Compressing and baling woven bags, cloth, waste paper, and scrap paper for convenient transportation and storage
- Compressing and baling wool and wool balls
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification range
- Hydraulic pressure drive with overhead type oil cylinder, operates without underground foundation
- All oil cylinders use imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Technical Specifications
| Model Number | Y82-250~Y82-1600 |
|---|---|
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Commercial Terms
| Minimum Order Quantity | 1 Set |
|---|---|
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 15 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Model Specifications
| Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|
| Y82-25T | 250KN/25t | 1080×580×1500 mm | 1080×580mm | 15KW | Turn-out |
| Y82-63T | 630KN/63t | 1080×750×1500 mm | 1080×750mm | 15KW | Turn-out |
| Y82-100T | 1000KN/100t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| Y82-160T | 1600KN/160t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| Y82-200 | 2000KN/200t | 1500×1000×1600 mm | 1500×1000mm | 37KW | Turn-out |
| Y82-250 | 2500KN/250t | 1500×1000×1600 mm | 1500×1000mm | 44KW | Turn-out or PLC control |
| Y82-315 | 3150KN/315t | 2200×1100×3000 mm | 2200×1100mm | 60KW | |
| Y82-400 | 4000KN/400t | 1500×1000×1600 mm | 1500×1000mm | 90KW |

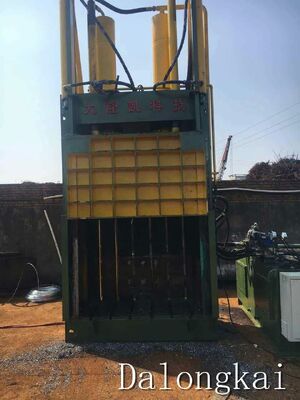

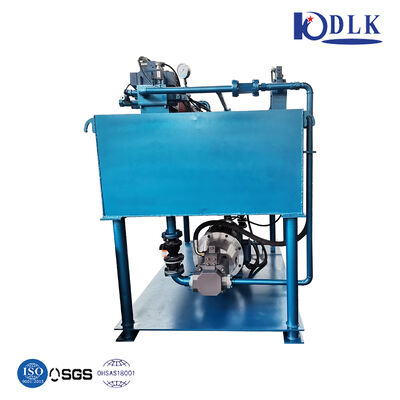

Machine Details
Manufacturing Facility
Frequently Asked Questions
How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We send spare parts free if problems are caused by us. For man-made problems, we provide spare parts at cost. Direct phone support available.
Can I visit your factory before ordering?
Yes, welcome to visit our factory at 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We are near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Are you a factory or trade company?
We are a manufacturer with our own factory for 20 years, with 50-60% export proportion.
How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications. Factory inspection is welcome, and we specialize in hydraulic balers and shears.
Is your price competitive?
We supply only good quality machines and provide the best factory price based on superior products and service.
