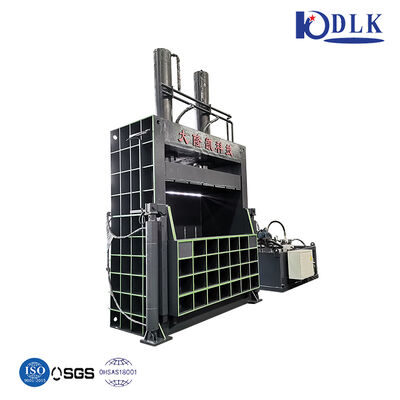

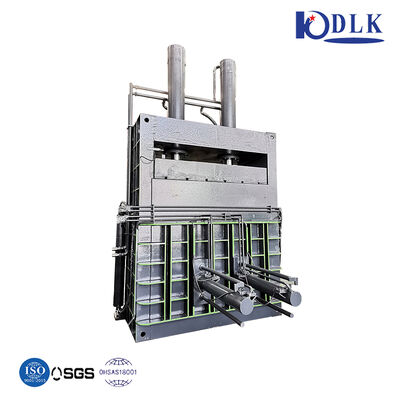

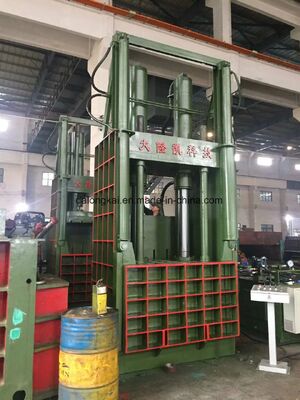

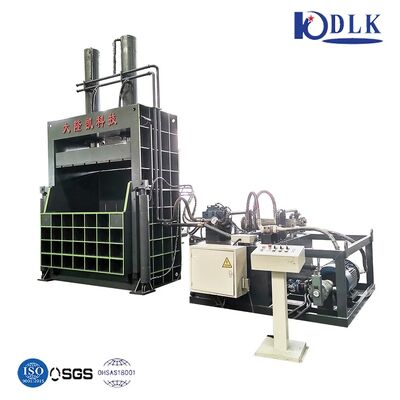

Y82-400 400 Ton Hydraulic Vertical Baler Machine with 1500*1000*3000mm Press Box Size and Four-Column Hydraulic Press
商品の詳細
| 型番 | ￥82-400 | 主要なCyl.Force | 400トン |
|---|---|---|---|
| プレスボックスのサイズ | 1500*1000*3000(mm) | ベールセクション | 1500*1000(mm) |
| 力 | 90 （kw） | ベール排出方法 | 袋押し |
| タイプ | 四列液压プレス | 公称力 | 4000KN/400t |
| チャンバーサイズ | 1500*1000*1600mm | オイルシリンダーのシール | インポートされたシーリングリング |
| 圧力範囲 | 15トン～400トン | 生産能力 | 5セット/月 |
| 供給の能力 | 15セット/月 | 最小注文数量 | 1セット |
| 受渡し時間 | あなたの要件として | ||
| ハイライト | 400 Ton Hydraulic Vertical Baler Machine,1500*1000*3000mm Press Box Size Scrap Recycling Baler,Four-Column Hydraulic Press Paper Baler Machine |
||
製品の説明
Y82-400 Scrap Recycling Hydraulic Vertical Baler Machine
Applications
This hydraulic vertical baler is designed for efficient compression and baling of various materials:
- Woven bags, cloth, waste paper, and scrap paper for convenient transportation and storage
- Wool and wool balls for industrial processing
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification options
- Hydraulic pressure drive system with overhead oil cylinder design, operates without underground foundation
- All oil cylinders utilize imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Product Specifications
| No. | Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|---|
| 1 | Y82-25T | 250KN/25t | 1080×580×1500 mm | 1080×580mm | 15KW | Turn-out |
| 2 | Y82-63T | 630KN/63t | 1080×750×1500 mm | 1080×750mm | 15KW | Turn-out |
| 3 | Y82-100T | 1000KN/100t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 4 | Y82-160T | 1600KN/160t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 5 | Y82-200 | 2000KN/200t | 1500×1000×1600 mm | 1500×1000mm | 37KW | Turn-out |
| 6 | Y82-250 | 2500KN/250t | 1500×1000×1600 mm | 1500×1000mm | 44KW | Turn-out or PLC control |
| 7 | Y82-315 | 3150KN/315t | 2200×1100×3000 mm | 2200×1100mm | 60KW | |
| 8 | Y82-400 | 4000KN/400t | 1500×1000×1600 mm | 1500×1000mm | 90KW |
Product Attributes
| Model Number | Y82-250~Y82-1600 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 15 sets per month |
| Delivery Time | As per your requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers are available for overseas service |
Manufacturer Profile
Dalongkai Technology Co., Ltd. specializes in the research, development, and manufacturing of hydraulic machinery and equipment for the scrap metal recycling industry. We are committed to contributing to renewable resources and environmental protection initiatives. Our product portfolio includes metal balers and metal shears designed to efficiently handle metal scrap, helping customers increase profitability while reducing operational costs.
