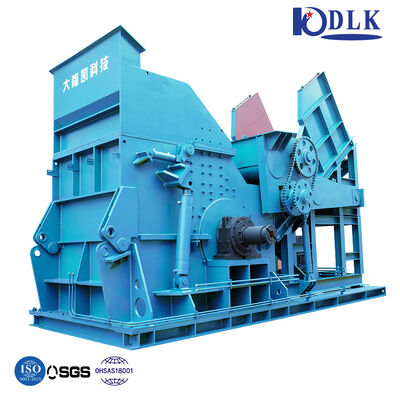

WS 500M Mobile Diesel Electric Hybrid Scrap Metal Shear Ideal for Scrap Yards and Metal Recycling Industry Applications
商品の詳細
| モデル | WS-500M | パワータイプ | ハイブリッド電気 + ディーゼル |
|---|---|---|---|
| 最大切断力 | 500 トン | 刃の長さ | 1400mm |
| せん断の高さ | 300/420のmm | 電動モーター | 74KW 380V/3P |
| ディーゼルエンジン | 120馬力ドイツ | 燃料ランタイム | 16時間（400Lタンク） |
| モビリティ | 一体型トレーラーシャーシ | コントロール | PLC + ワイヤレスリモート |
製品の説明
WS 500M Mobile Diesel Electric Hybrid Scrap Metal Shear Ideal for Scrap Yards and Metal Recycling Industry Applications
The WS-500M is a truly mobile scrap metal shear with a dual diesel-electric hybrid power system. Unlike conventional shears that require fixed power infrastructure, the WS-500M can operate on grid electricity when available or switch to its onboard diesel engine for remote locations without power access. The integrated trailer chassis allows rapid deployment between scrap yards.
Mobility & Power Flexibility
- Dual Power Modes: 74 KW electric motor for grid operation + 120 HP diesel engine for off-grid sites
- Seamless Power Switching: Automatic transfer between electric and diesel modes without interrupting operation
- Integrated Trailer Chassis: Highway-towable design with standard fifth-wheel or ball hitch connection
- No Foundation Required: Built-in hydraulic stabilizers deploy for level operation on any firm ground
- Quick Deployment: Ready to operate within 30 minutes of arrival on site
- Compact Container Style: 20-foot container footprint for easy transport by truck, rail, or ship
Applications
Perfect for mobile scrap processing services, temporary demolition sites, remote mining operations,base recycling, disaster cleanup operations, and multi-yard operators who move equipment between locations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | WS-500M |
| Power Type | Hybrid (Electric + Diesel) |
| Max Cutting Force | 500 Tons |
| Blade Length | 1400 mm |
| Shear Height | 300/420 mm |
| Cutting Speed | 3-4 times/min |
| Processing Capacity | 6-9 tons/hour |
| Electric Motor Power | 74 KW (380V/3P 50Hz) |
| Diesel Engine Power | 120 HP (Deutz Tier 3) |
| Fuel Tank Capacity | 400 Liters (approx. 16 hours runtime) |
| Pump Type | A4V250 |
| Hydraulic System Pressure | ≤ 26 MPa |
| Control System | PLC + Wireless Remote Control |
| Cooling System | Hydraulic Oil Cooler + Engine Radiator |
| Mobility | Integrated Trailer Chassis with Stabilizers |
| Transport Dimensions | 6200 x 2500 x 2800 mm |
| Machine Weight | 28 Tons |
Our Service
- 24/7 global technical support via phone and remote access
- One year comprehensive warranty on all components including engine
- Worldwide spare parts delivery within 72 hours
- On-site commissioning and operator training available
- Custom diesel engine options (Deutz, Perkins) available
Contact us for a mobile demonstration at your location.
