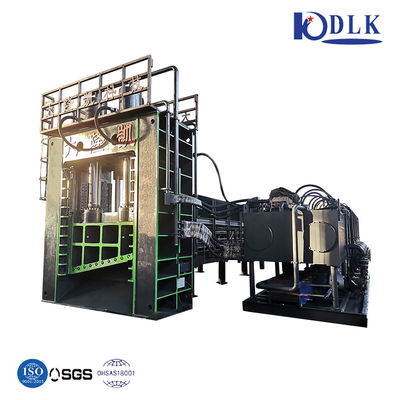

Gantry Shear with Automated Adjustments and Safety Mechanisms Featuring 42CrMo Blades for Enhanced Operator Protection
商品の詳細
| 型番 | FS-2014 | タイプ | 屑鉄のシュレッダー |
|---|---|---|---|
| オートメーション | 半自動 | 制御システム | PLC制御 |
| パワータイプ | 油圧 | 容量 | 1時間あたり10～15トン |
| 力 | 110kw | 給餌ポートサイズ | 1830*1220mm |
| クラッシュ後の長さ | 100~200mm | 刃の材質 | 42CrMo |
| 刃の厚さ | 20-75mm | ブレードの数 | 20-33個 |
| 機械重量 | 2100～48500kg | 破砕キャビティサイズ | 600*530mm ～ 2500*1520mm |
| 生産能力 | 10セット/月 |
製品の説明
Gantry Shear Featuring Automated Adjustments and Safety Mechanisms
Service & Support
- One year guarantee with lifelong maintenance support
- Complimentary spare parts package including tool box and operation manual
- Direct technical support via phone
- Global service response within 3 days
Key Features
- High alloy 42CrMo blades for superior strength, toughness, and break resistance
- brand main electrical components for reliable performance
- Automatic overload protection to prevent machine jams and damage
- High torque operation with low speed, minimal noise, and maximum efficiency
Technical Specifications
| Model | Power (kw) | Crushing Cavity Size (mm) | Blade Thickness (mm) | Number of Blades (pcs) | Machine Weight (kg) |
|---|---|---|---|---|---|
| DSD60 | 5.5+5.5 | 600×530 | 20 | 30 | 2100 |
| DSD80 | 7.5+7.5 | 800×530 | 20 | 40 | 2350 |
| DSF80 | 15+15 | 800×800 | 40 | 20 | 4400 |
| DSF100 | 18.5+18.5 | 1000×800 | 40 | 25 | 4550 |
| DSF120 | 22+22 | 1200×800 | 40 | 30 | 5150 |
| DSG100 | 22+22 | 1000×980 | 40 | 25 | 9100 |
| DSG130 | 37+37 | 1300×980 | 40 | 32 | 12000 |
| DSG160 | 45+45 | 1600×980 | 50 | 32 | 14200 |
| DSK150 | 55+55 | 1500×1520 | 75 | 20 | 32200 |
| DSK180 | 75+75 | 1800×1520 | 75 | 24 | 35000 |
| DSK225 | 90+90 | 2250×1520 | 75 | 30 | 42600 |
| DSK250 | 110+110 | 2500×1520 | 75 | 33 | 48500 |
Manufacturer Profile
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted manufacturer in the waste recycling equipment industry for over a decade. As a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products include shear balers, scrap balers, scrap shears, and recycling cranes. We also supply horizontal and vertical balers for compacting plastic, paper, cardboard, straw, textiles, and various other waste materials.
The Dalongkai brand has received critical acclaim both domestically and internationally. As a trusted waste recycling equipment manufacturer, we have successfully passed TUV certification and ISO9001 Quality Management System certification. We are currently in the process of obtaining European standards approvals including CE and UL certifications.
DS Double-Shaft Shredder
The DS double-shaft shredder features a robust construction comprising knife roller (spindle + blade), fixed knife, shredder box, box support, feed system, power system, and electrical control system. This industrial shredder is widely utilized for its low rotating speed and high torque characteristics, making it ideal for processing hard or large materials including waste paper, wood, garden waste, kitchen waste, medical waste, tires, plastic, household appliances, drums, and iron sheets.
Frequently Asked Questions
How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by manufacturing defects. For user-caused issues, we also provide spare parts at cost. Any problem can be addressed by calling us directly.
Can I visit your factory before ordering?
Yes, we welcome visits to our factory. Our address: 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China. We are located near Shanghai Pudong Airport and can provide airport pickup service. Hotel booking assistance is available.
Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with export accounting for 50-60% of our business.
How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents and CE/ISO certifications for all equipment. Factory inspections are welcome, and we are conveniently located near Shanghai Pudong Airport. We specialize in hydraulic balers and hydraulic shears.
Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service support.
