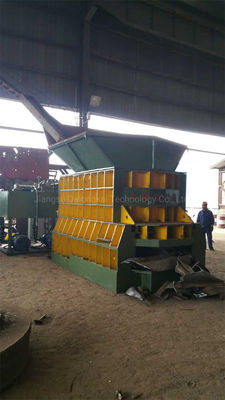

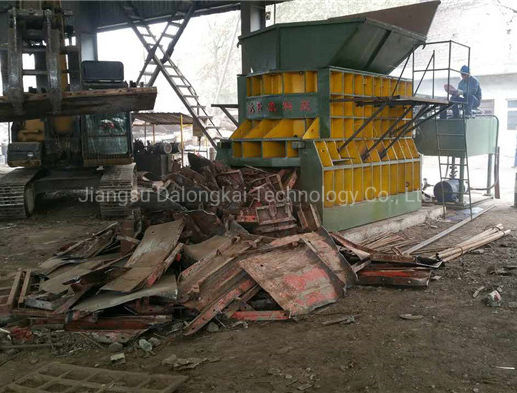

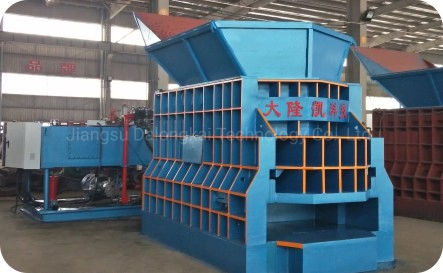

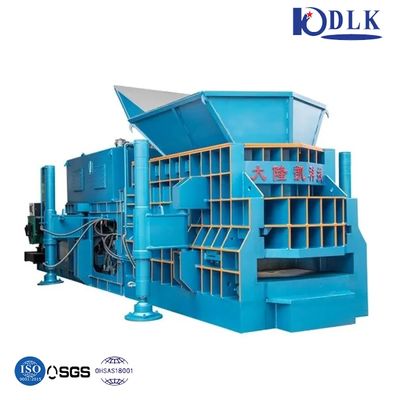

WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 最大切断力 | 5000kN | ブレードの長さ | 1400/1600mm |
|---|---|---|---|
| 生産率 | 6～9t/H | 力 | 90kw |
| シャーリングハイドロシリンダー | YG450/280 | ハイドロシリンダー数量 | 2 |
| 名目上の推力 | 4000Knx2 | プッシュハイドロシリンダー | YG320/220 |
| 押し推力 | 2000KN | 油圧 | <22Mpa |
| 切断寸法 | 1600/420mm | せん断時間 | 2〜4回/分 |
| 動作モード | 機械的負荷、PLC制御 | 電力仕様 | 415V/3P 50Hz |
| メイン・マシン・パワー | 220kW | ||
| ハイライト | WS-500 Gantry Shear,5000kn Max Cutting Force Hydraulic Metal Shear Machine,1400/1600mm Blade Length Gantry Shear |
||
製品の説明
WS-500 Automatic Hydraulic Metal Shear Machine
WS-500 Horizontal Metal Container Shear
This scrap shear is designed for economical scrap processing with easy operation and flexible transportation via roll on/roll off system. Various models are available in the HPM series of horizontal balers with manual belting.
Key Features
- Horizontal structure allows for manual or conveyor-assisted automatic feeding
- PLC control with push-button operation for safe and reliable performance
- High output capacity for efficient scrap processing
Technical Specifications
| Parameter | Content | Remark |
|---|---|---|
| Shearing Hydro-Cylinder | Model: YG450/280 Quantity: 2 Nominal Thrust: 4000Knx2 |
|
| Push Hydro-Cylinder | Model: YG320/220 Quantity: 1 Nominal Thrust: 2000Kn |
|
| Hydraulic System Working Pressure | <22Mpa | |
| Cutting Length/Height | 1600/420mm | |
| Shearing Times | 2-4 Times/Min | Empty load Load operation |
| Operating Mode | Mechanical Loading Materials, Push-Button & PLC Control | (With The Remote Control) |
| Power Specification | 415V/3P 50Hz | (According to your requirement) |
| Main Machine Power | 220Kw | (not including system of cooling, heating and filtering) |
| Oil Tank Size | 4000X2000X800 (6000L) | |
| Motor | Model: Y2-250M-4 Quantity: 4 Rated Speed: 1470 Rpm Rated Power: 55 Kw |
|
| Pump | Model: A4V250 Quantity: 4 Nominal Displacement: 250ml/r Rated Pressure: 31.5Mpa |
Other Available Models
| Model | Max Cutting Force(KN) | Blade Length(mm) | Shear Height(mm) | Production Rate(t/h) | Power(KW) |
|---|---|---|---|---|---|
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 110 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 220 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 360 |
About Jiangsu Dalongkai Technology Co., Ltd.
We specialize in manufacturing scrap metal recycling processing and hydraulic equipment. With strong technology, advanced manufacturing lines, and comprehensive testing devices, we produce various hydraulic scrap balers, scrap shears (including container shears), hydraulic metal balers, garbage compactors, briquetting presses, sheet metal shears, and other non-standard equipment.
Our machines are ideal for scrapyards, steel mills, scrap recycling processing industry, and nonferrous & ferrous smelting industry. We export worldwide to Russia, India, South Africa, Southeast Asia, and other markets.
