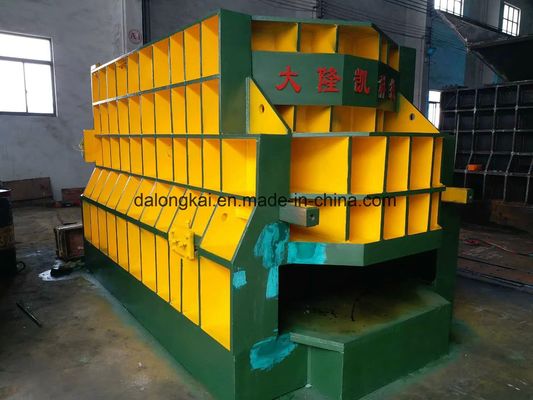

WS-630 Hydraulic Gantry Shear with 8-12t/H Production Rate 135kw Power and Horizontal Structure
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 最大切断力 | 6300kN | ブレードの長さ | 1400mm |
|---|---|---|---|
| 生産率 | 8-12T/H | 力 | 135KW |
| 公称力 | 400ton | ドリブンタイプ | 油圧 |
| 最大せん断長さ | 1600MM | 電圧 | 21.5MPA |
| 自動グレード | 自動 | せん断の高さ | 300/420mm |
| 型番 | WS-630 | 生産能力 | 5セット/月 |
| ブレードの長さ | 1400/1600mm | ||
| ハイライト | 8-12t/H Production Rate Gantry Shear,135kw Power Hydraulic Metal Shear,Horizontal Structure Automatic Shear Machine |
||
製品の説明

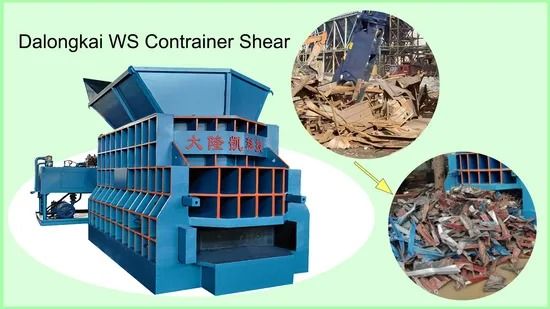

WS-630 Hydraulic Metal Structure Automatic Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap metal processing, featuring easy operation and flexible transportation with a roll on/roll off system. Various models are available to suit different requirements.
Applications
Ideal for scrap metal processing. The HPM series of horizontal balers work with manual belting for efficient operation.
Key Features
- Horizontal structure allows for manual or automatic feeding with conveyor
- PLC control and push-button operation ensure safety and reliability
- High output for efficient processing
Specifications
| Product Name | WS Horizontal Metal Shear |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 400Ton |
| Driven Type | Hydraulic |
| Max. Length To Shear | 1600mm |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 5 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Technical Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
