WS-630 Customizable Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 型番 | WS-630 | 最大切断力 | 6300kN |
|---|---|---|---|
| ブレードの長さ | 1400mm | 生産率 | 8-12T/H |
| 力 | 135KW | 公称力 | 400ton |
| ドリブンタイプ | 油圧 | 最大せん断長さ | 1600MM |
| 電圧 | 21.5MPA | 自動グレード | 自動 |
| せん断の高さ | 300/420 | 生産能力 | 5セット/月 |
| 制御タイプ | PLC | 操作タイプ | 押すボタン |
| 構造タイプ | 水平 | ||
| ハイライト | Customizable Gantry Shear,6300kn Max Cutting Force Gantry Shear,1400mm Blade Length Gantry Shear |
||
製品の説明

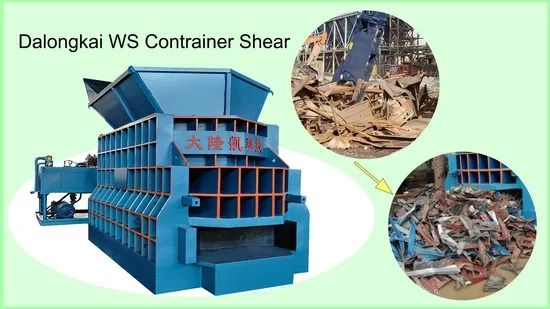

WS-630 Horizontal Automatic Metal Cutting Machine
The WS Horizontal Metal Shear is designed for efficient scrap metal processing, featuring easy operation and flexible transportation with a roll on/roll off system. Various models are available to suit different production requirements.
Key Applications
- Economical scrap metal processing and recycling
- Ideal for metal fabrication and waste management operations
Product Features
- Horizontal structure: Supports both manual feeding and automatic feeding with conveyor
- PLC control system: Push-button operation ensures safe and reliable performance
- High production output: Designed for maximum efficiency in metal cutting operations
Product Specifications
| Product Name | WS Horizontal Metal Shear |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 400Ton |
| Driven Type | Hydraulic |
| Max. Length To Shear | 1600mm |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 5 sets/month |
| Delivery Time | As per customer requirements |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Technical Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
