WS-315 Model Gantry Shear with 3150kn Max Cutting Force and 800mm Blade Length for Scrap Metal Processing
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 型番 | WS-315 | 最大切断力 | 3150kN |
|---|---|---|---|
| ブレードの長さ | 800mm | 生産率 | 3～5t/h |
| 力 | 60kW | 公称力 | 400ton |
| ドリブンタイプ | 油圧 | 最大せん断長さ | 1600MM |
| 電圧 | 21.5MPA | 自動グレード | 自動 |
| せん断の高さ | 300/420mm | 生産能力 | 5セット/月 |
| 最大切削抵抗（WS-400） | 4000KN | 刃長(WS-400) | 1000mm |
| パワー（WS-400） | 74kw | ||
| ハイライト | WS-315 Model Gantry Shear,3150kn Max Cutting Force Scrap Metal Shear,800mm Blade Length Horizontal Metal Shear |
||
製品の説明

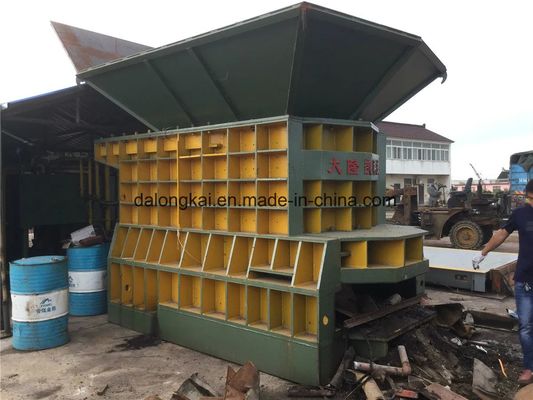

WS-315 Horizontal Scrap Metal Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation via roll on/roll off system. Various models are available to suit different operational requirements.
Key Features
- Horizontal structure allows for manual or automatic feeding with conveyor
- PLC control with push-button operation ensures safety and reliability
- High output capacity for efficient scrap processing
- Works with manual belting (HPM series)
Technical Specifications
Product Name:
WS Horizontal Metal Shear
Condition:
New
Application:
Scrap metal
Nominal Force:
400Ton
Driven Type:
Hydraulic
Max. Length To Shear:
1600mm
Voltage:
21.5Mpa, Customized
Color:
Customized
Automatic Grade:
Automatic
Commercial Terms
Minimum Order Quantity:
1 Set
Price:
Negotiable
Payment Terms:
30% T/T In Advance
Supply Ability:
5 sets/month
Delivery Time:
As per your requirement
Packaging Details:
Seaworthy packing
After-sales Service:
Engineers available for overseas service
Model Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
