Manu梱包機機械は非常によく働く。 -
Ankitあなたの梱包機は非常によく、よく働く。屑鉄のベールは大きい。

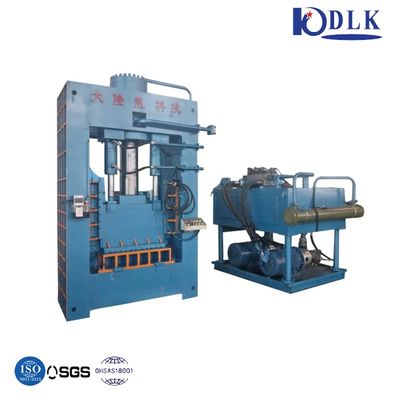

Hydraulic Gantry Shear with 120 Ton Shear Force 600mm Blade Length and 18*500mm Max Cutting for Scrap Metal Processing
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 型番 | Q15A-1200 | 最大切断力 | 120トン |
|---|---|---|---|
| 刃の長さ | 600 （Mm） | 最大切断仕様 | 18×500(mm) |
| せん断周波数 | 4-7(回/分) | モーター出力 | 12(Kw) |
| 公称力 | 120トン～315トン | ドリブンタイプ | 油圧 |
| 力 | 15KW～44kW | 電圧 | 21.5Mpa、カスタマイズ |
| 自動グレード | 半自動 | せん断力 | 120 |
| max.cutting Material | 18*500 | モーター | 15 |
| 生産能力 | 10セット/月 | ||
| ハイライト | 120 Ton Shear Force Gantry Shear,600mm Blade Length Plate Shear,18*500mm Max Cutting Scrap Metal Shear |
||
製品の説明
Product Overview
This gantry plate shear machine is designed for processing various boards, cutting them into materials of different specifications. It effectively replaces flame cutting methods while significantly reducing operational costs.
Technical Specifications
Basic Information
| Model Number | Q15-1200~Q15-3150 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Product Attributes
| Product Name | Gantry Plate Shear |
| Condition | New |
| Application | Scrap Metal Processing |
| Nominal Force | 120Tons ~315Tons |
| Driven Type | Hydraulic |
| Power | 15KW~44kW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Detailed Specifications
| Model | Shearing Force (ton) | Blade Length (mm) | Max. Cutting Material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18×500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20×500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25×500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30×500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30×700 | 4-7 | 2×15 |
| Q15A-3150 | 315 | 800 | 30×700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35×700 | 4-7 | 2×22 |
| Q15A-5000 | 500 | 900 | 40×800 | 4-7 | 2×45 |
| Q15B-1600 | 160 | 1200 | 16/12×1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16×1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20×1000 | 4-7 | 2×18.5 |
| Q15B-3150 | 315 | 1200 | 30/25×1000 | 4-7 | 2×18.5 |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |

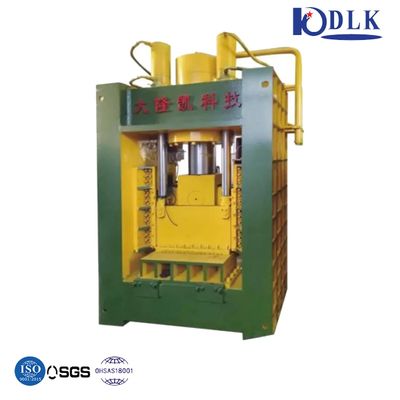

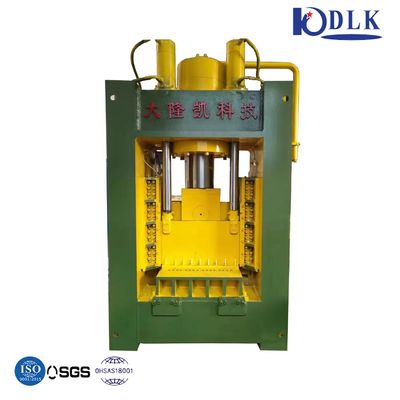

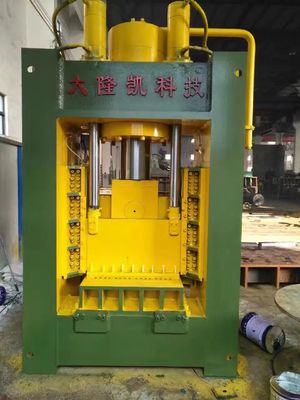

Product Images

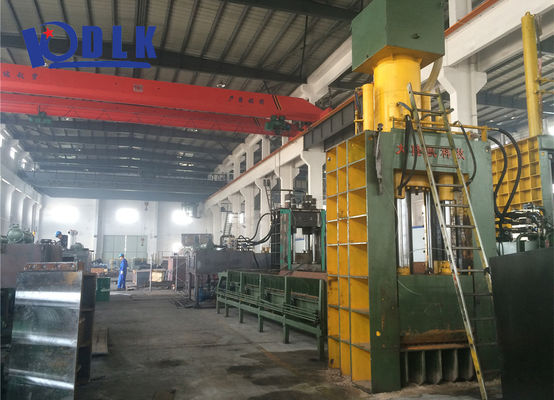

Factory & Certification
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts for free if problems are caused by us. For man-made problems, we also provide spare parts at cost. Any issues can be addressed by calling us directly.
Q2: Can I visit your factory before ordering?
Yes, welcome to visit our factory. Our address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We are near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with export proportion of 50-60%.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents and CE, ISO certifications for all equipment. Welcome to inspect anytime - we are conveniently located near Shanghai Pudong airport. We specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory price based on superior products and service.
