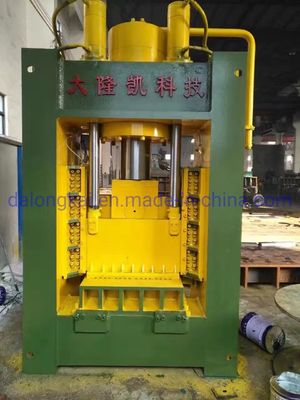

Q15A-2500L Gantry Plate Shear Machine with 250 Ton Max Shear Force, 600mm Blade Length, and 30*500mm Max Cutting Specifications
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 型番 | Q15A-2500l | 最大切断力 | 250(トン) |
|---|---|---|---|
| 刃の長さ | 600 （Mm） | 最大切断仕様 | 30×500(mm) |
| せん断周波数 | 4-7(回/分) | モーター出力 | 22 (kW) |
| 生産能力 | 10セット/月 | 公称力 | 120トン～315トン |
| ドリブンタイプ | 油圧 | 電圧 | 21.5Mpa、カスタマイズ |
| 自動グレード | 半自動 | せん断力 | 250(トン) |
| max.cutting Material | 30×500(mm) | モーター | 22 (kW) |
| ハイライト | 250 Ton Max Shear Force Gantry Shear,600mm Blade Length Plate Shear Machine,30*500mm Max Cutting Specifications Gantry Plate Shear |
||
製品の説明

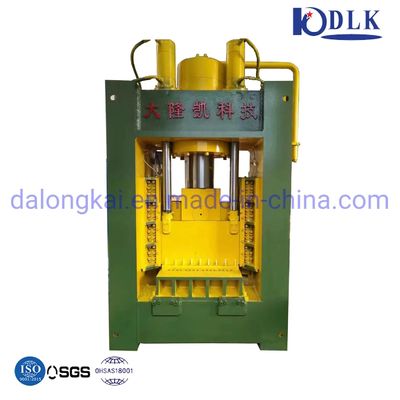

Q15A-2500L Gantry Plate Shear Machine
Product Overview
This hydraulic gantry plate shear machine is designed for processing various metal plates by shearing them into materials of different specifications. It effectively replaces flame cutting methods, significantly reducing operational costs while maintaining precision and efficiency.
Key Specifications
| Model Number | Q15-1200~Q15-3150 |
|---|---|
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
| Product Name | Gantry Plate Shear |
| Condition | New |
| Application | Scrap Metal Processing |
| Nominal Force | 120Tons ~315Tons |
| Driven Type | Hydraulic |
| Power | 15KW~44kW |
| Voltage | 21.5Mpa, Customized |
| Automatic Grade | Semi-Automatic |
Technical Performance Data
| Model | Shearing Force (ton) | Blade Length (mm) | Max. Cutting Material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18×500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20×500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25×500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30×500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30×700 | 4-7 | 2×15 |
| Q15A-3150 | 315 | 800 | 30×700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35×700 | 4-7 | 2×22 |
| Q15A-5000 | 500 | 900 | 40×800 | 4-7 | 2×45 |
| Q15B-1600 | 160 | 1200 | 16/12×1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16×1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20×1000 | 4-7 | 2×18.5 |
| Q15B-3150 | 315 | 1200 | 30/25×1000 | 4-7 | 2×18.5 |
Primary Applications
This series of gantry plate shear machines is engineered for processing various metal plates by cutting them into materials of different specifications. It completely replaces flame cutting processes while significantly reducing operational costs. The machine is particularly suitable for cold shearing of electrolytic copper plates, nickel plates, and shipbuilding materials.
Commercial Terms
| Minimum Order Quantity | 1 Set |
|---|---|
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per customer requirements |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Product Images
Factory Overview
Certification
Packaging & Shipping
