Q15A-2500ll Gantry Plate Shear Machine with 800mm Blade Length, 30*700mm Max Cutting, and 2*15Kw Motor
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 型番 | Q15A-2500ll | 刃の長さ | 800(mm) |
|---|---|---|---|
| 最大切削仕様 | 30×700(mm) | せん断周波数 | 4-7(回/分) |
| モーター出力 | 2*15(Kw) | 公称力 | 250Tons |
| ドリブンタイプ | 油圧 | 電圧 | 21.5MPA |
| 自動グレード | 半自動 | せん断力 | 250(トン) |
| max.cutting Material | 30×700(mm) | 力 | 15KW～44kW |
| 生産能力 | 10セット/月 | モーター | 2*15(Kw) |
| ハイライト | 800mm Blade Length Gantry Shear,30*700mm Max Cutting Plate Shear Machine,2*15Kw Motor Gantry Plate Shear |
||
製品の説明
Q15A-2500ll Gantry Plate Shear Machine
Product Overview
This hydraulic gantry plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces flame cutting methods while significantly reducing operational costs.
Technical Specifications
Model Range: Q15-1200 to Q15-3150
Certification: SGS
Origin: Jiangsu, P.R. China
Application: Scrap metal processing
Force Capacity: 120Tons to 315Tons
Drive System: Hydraulic
Power: 15KW to 44kW
Voltage: 21.5Mpa (Customizable)
Automation: Semi-Automatic
Color: Customizable
Certification: SGS
Origin: Jiangsu, P.R. China
Application: Scrap metal processing
Force Capacity: 120Tons to 315Tons
Drive System: Hydraulic
Power: 15KW to 44kW
Voltage: 21.5Mpa (Customizable)
Automation: Semi-Automatic
Color: Customizable
Detailed Model Specifications
| Model | Shearing Force (ton) | Blade Length (mm) | Max. Cutting Material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18×500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20×500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25×500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30×500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30×700 | 4-7 | 2×15 |
| Q15A-3150 | 315 | 800 | 30×700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35×700 | 4-7 | 2×22 |
| Q15A-5000 | 500 | 900 | 40×800 | 4-7 | 2×45 |
| Q15B-1600 | 160 | 1200 | 16/12×1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16×1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20×1000 | 4-7 | 2×18.5 |
| Q15B-3150 | 315 | 1200 | 30/25×1000 | 4-7 | 2×18.5 |

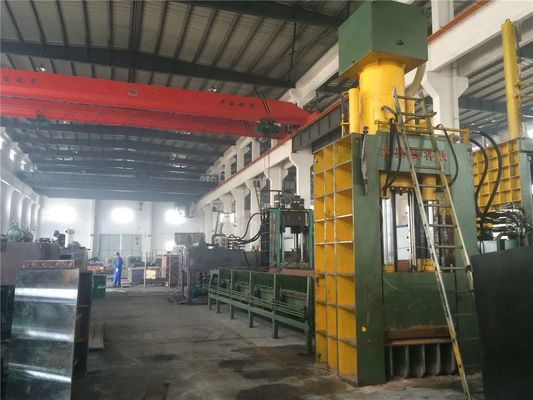

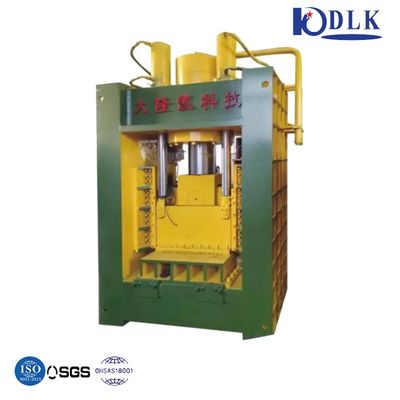

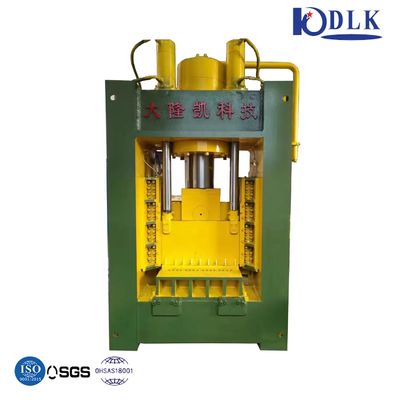

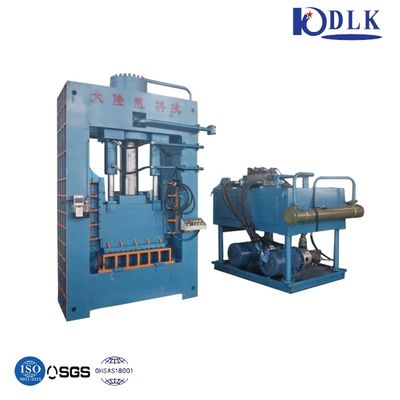

Product Images
Factory & Certification
Commercial Terms
Minimum Order: 1 Set
Pricing: Negotiable
Payment: 30% T/T In Advance
Supply Capacity: 10 sets/month
Delivery: As per requirement
Packaging: Seaworthy packing
After-sales Service: Engineers available for overseas service
Pricing: Negotiable
Payment: 30% T/T In Advance
Supply Capacity: 10 sets/month
Delivery: As per requirement
Packaging: Seaworthy packing
After-sales Service: Engineers available for overseas service
Frequently Asked Questions
Q1: How can I get after-service support?
We provide one year guarantee and lifelong maintenance. We will send you spare parts for free if problems are caused by manufacturing defects. For user-caused issues, we provide spare parts at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China, near Shanghai Pudong Airport. We provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% export proportion.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service.
