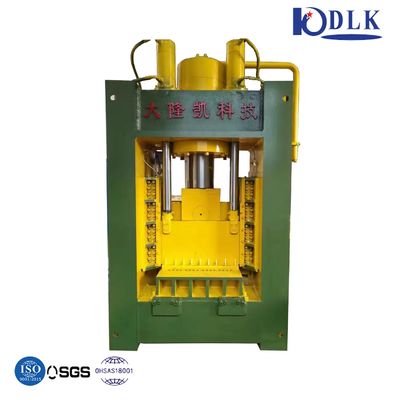

315 Ton Max Shear Force Gantry Plate Shear with 800mm Blade Length and 30*700mm Max Cutting Specifications
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 型番 | Q15A-3150 | 最大切断力 | 315(トン) |
|---|---|---|---|
| 刃の長さ | 800(mm) | 最大切断仕様 | 30×700(mm) |
| せん断周波数 | 4-7(回/分) | モーター出力 | 45 (KW) |
| 公称力 | 120トン～315トン | ドリブンタイプ | 油圧 |
| 力 | 15KW～44kW | 電圧 | 21.5Mpa、カスタマイズ |
| 自動グレード | 半自動 | 生産能力 | 5セット/月 |
| 最大切削材料 | 30×700(mm) | せん断力 | 315(トン) |
| モーター | 45 (KW) | ||
| ハイライト | 315 Ton Max Shear Force Gantry Shear,800mm Blade Length Gantry Plate Shear,30*700mm Max Cutting Specifications Hydraulic Gantry Shear |
||
製品の説明
Gantry Plate Shear Machine
This hydraulic gantry plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces traditional flame cutting methods while significantly reducing operational costs.
Product Information
| Model Number | Q15-1200~Q15-3150 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Technical Specifications
| Product Name | Gantry Plate Shear |
| Condition | New |
| Application | Scrap Metal Processing |
| Nominal Force | 120Tons ~ 315Tons |
| Driven Type | Hydraulic |
| Power | 15KW ~ 44kW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Detailed Model Specifications
| Model | Shearing Force (ton) | Blade Length (mm) | Max. Cutting Material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18×500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20×500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25×500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30×500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30×700 | 4-7 | 2×15 |
| Q15A-3150 | 315 | 800 | 30×700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35×700 | 4-7 | 2×22 |
| Q15A-5000 | 500 | 900 | 40×800 | 4-7 | 2×45 |
| Q15B-1600 | 160 | 1200 | 16/12×1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16×1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20×1000 | 4-7 | 2×18.5 |
| Q15B-3150 | 315 | 1200 | 30/25×1000 | 4-7 | 2×18.5 |

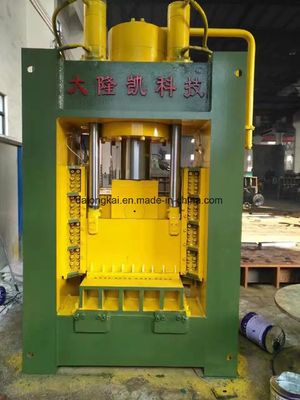

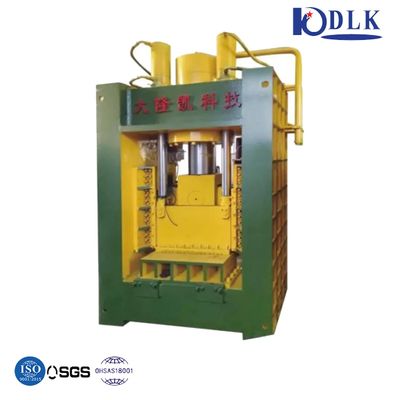

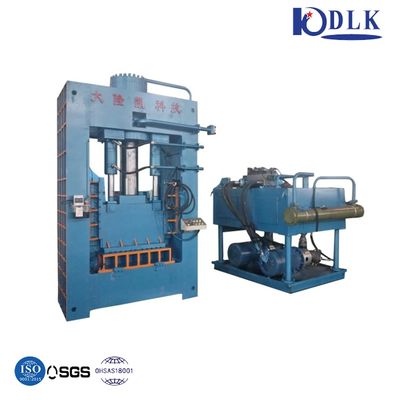

Product Images

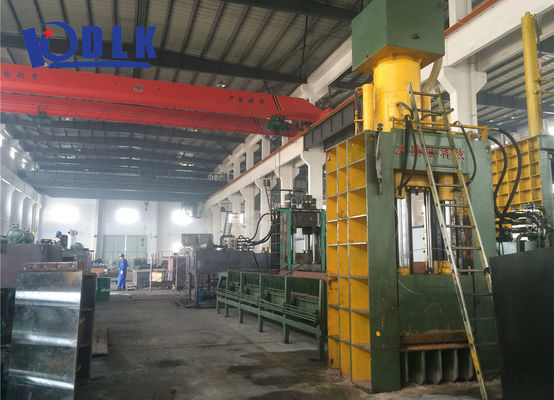

Factory & Certification
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per customer requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by manufacturing defects. For issues caused by improper operation, we also provide spare parts at cost. You can contact us directly for any technical support.
Q2: Can I visit your factory before placing an order?
Yes, we welcome visits to our factory. Our address: 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China. We are conveniently located near Shanghai Pudong Airport and can arrange airport pickup. Hotel booking services are also available.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years. Export accounts for 50-60% of our business.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable technical suggestions and competitive pricing. Our credentials include third-party assessments, national patents, CE certification, and ISO standards for all equipment. We welcome factory inspections anytime and specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machines and offer the best factory pricing based on superior products and comprehensive service support.
