PSX-1500 Hydraulic Drive Scrap Shredder with Hard Alloy Cutter for Fine Grinding of Scrap Metal
商品の詳細
| 型番 | PSX-1500 | モーター | 40-50(T/H) |
|---|---|---|---|
| タイプ | ハンマークラッシャー | ドライブ | 油圧 |
| 粉砕度 | 微粉砕機 | 破砕スタイル | 研削と衝撃 |
| 原理 | ローラー・カッティング | カッター材質 | 堅い合金 |
| 圧縮強度 | >300MPA | 公称力 | 400トン ～4500トン |
| 力 | 400KW～4500kW | 電圧 | 21.5Mpa、カスタマイズ |
| 自動グレード | 自動 | 開口部の幅 | 2500mm |
| 容量 | 40-50(T/H) | ||
| ハイライト | Hydraulic Drive Scrap Shredder,Fine Grinding Scrap Metal Shear,Hard Alloy Cutter Hammer Crusher |
||
製品の説明

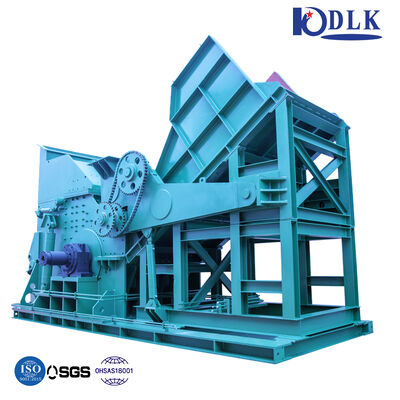

PSX-1500 Scrap Shredder Line Machine
Product Overview
The PSX Scrap Steel Shredder Line is engineered to process various light and thin materials into pure charge for steel making operations.
Applications
This industrial shredder efficiently processes:
- Discarded automobiles (excluding tires, gasoline cylinders, tanks, engines, and gear boxes)
- Tin plate categories
- Household appliances (excluding motors, compressors, and axles)
- Bicycle bodies and similar materials
- Empty tanks (excluding liquids, oil paint, etc.)
- Other suitable shreddable materials
Through smashing and compressing, the shredder removes impurities and increases material density, reducing transportation and smelting costs while providing high-quality furnace charge for steel plants.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | PSX Scrap Steel Shredder Line |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 400Tons ~ 4500Tons |
| Driven Type | Hydraulic |
| Power | 400KW ~ 4500kW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Performance Specifications
| Model | Feed Opening Width (mm) | Power (KW/HP) | Capacity (t/h) |
|---|---|---|---|
| PSX-400/450 | 1200 | 400KW/450KW/535HP | 6-10 |
| PSX-750 | 2200 | 750(1000) | 15-20 |
| PSX-900 | 2200 | 900(1200) | 20-30 |
| PSX-1200 | 2500 | 1200(1600) | 25-40 |
| PSX-1500 | 2500 | 1500(2000) | 40-50 |
| PSX-2000 | 2500 | 2000 | 50-60 |
| PSX-2250 | 2500 | 2250(3000) | 60-80 |
| PSX-3000 | 2500 | 3000(4000) | 80-100 |
| PSX-4500 | 2500 | 4500(6000) | 100-160 |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 6 sets /year |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |

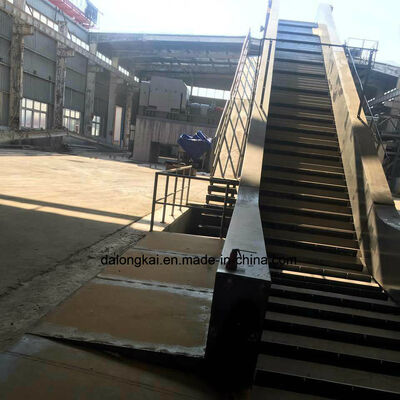

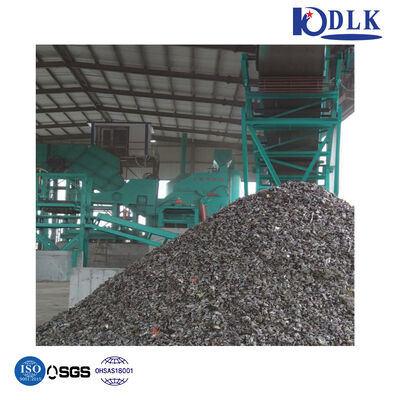

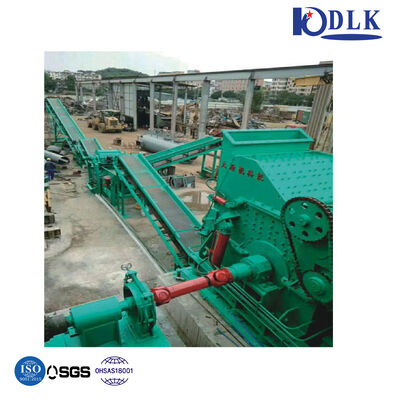

Product Images
Factory & Certifications
