WS-500 Horizontal Scrap Metal Shear Machine with 5000kn Max Cutting Force, 1400/1600mm Blade Length, and 6-9t/H Production Rate
商品の詳細
| 型番 | WS-500 | 最大切断力 | 5000kN |
|---|---|---|---|
| 刃の長さ | 1400/1600mm | 生産率 | 6～9t/H |
| 力 | 90kw | 公称力 | 400トン |
| ドリブンタイプ | 油圧 | 最大せん断長さ | ≤0.2ミル |
| 電圧 | 21.5MPA | 自動グレード | 自動 |
| せん断の高さ | 300/420mm | 生産能力 | 5セット/月 |
| 制御タイプ | PLC | 操作の種類 | 押すボタン |
| 給餌タイプ | 手動/自動 | ||
| ハイライト | 5000kn Max Cutting Force Gantry Shear,1400/1600mm Blade Length Scrap Metal Shear,6-9t/H Production Rate Horizontal Metal Shear |
||
製品の説明

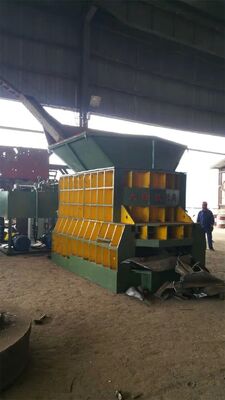

WS-500 Horizontal Scrap Metal Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap processing operations.
This machine features easy operation and flexible transportation with a roll on/roll off system,
making it ideal for various scrap metal processing applications.
Key Applications
Specifically engineered for scrap metal processing, the WS series provides efficient
and cost-effective solutions for metal recycling operations.
Machine Features
- Horizontal structure design allowing both manual and automatic conveyor feeding
- PLC control system with push-button operation for enhanced safety and reliability
- Manual belting system for operational flexibility
- Roll on/roll off transportation system for easy mobility
- Multiple models available to suit various production requirements
Technical Specifications
| Product Name | WS Horizontal Metal Shear |
|---|---|
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 400 Ton |
| Driven Type | Hydraulic |
| Max. Length To Shear | 1600mm |
| Voltage | 21.5 Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Performance Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
Commercial Terms
| Minimum Order Quantity | 1 Set |
|---|---|
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 5 sets /month |
| Delivery Time | As per customer requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service and support |
