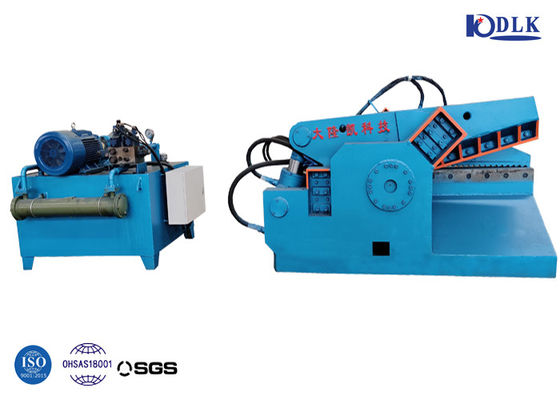

WS-630S Servo-Driven Hydraulic Scrap Metal Shear with 630 Tons Cutting Force and IoT Smart Control
商品の詳細
| モデル | WS-630S | ドライブ技術 | サーボ駆動油圧 |
|---|---|---|---|
| 最大切断力 | 630 トン (200-630T 調整可能) | 刃の長さ | 1400mm |
| せん断の高さ | 300/420のmm | ストローク範囲 | 100 ～ 850 mm プログラム可能 |
| 騒音レベル | ≤ 75dB(A) | サーボモーター | 110KW ACサーボ |
| 接続性 | イーサネット/Wi-Fi/4G、IoT | コントロール | PLC タッチ + リモート + IoT |
| ハイライト | Servo Precision Metal Shear,Programmable Stroke Scrap Cutter,IoT Smart Recycling Machine |
||
製品の説明
WS-630S Servo Driven Precision Scrap Metal Shear
The WS-630S pioneers the use of servo-driven hydraulic technology in scrap metal shearing, delivering unmatched precision, energy efficiency, and operational control. The servo pump system provides exact flow control, enabling adjustable cutting force and stroke position for processing diverse material types and thicknesses with optimal results.
Servo Precision Advantages
- Servo Pump System: High-response servo motor directly drives hydraulic pump for instantaneous flow and pressure control
- Programmable Stroke Control: Adjust cutting stroke length from 100mm to 850mm based on material size, reducing unnecessary cycle time
- Precision Pressure Control: Automatically adjusts cutting force from 200 to 630 tons based on material resistance
- Material Recognition Mode: Pre-set profiles for different scrap types (light aluminum, heavy steel, mixed materials) with one-touch selection
- Ultra-Quiet Operation: Servo motor operates at < 75 dB, significantly quieter than conventional hydraulic power units
- IoT Ready: Built-in connectivity for remote monitoring, predictive maintenance alerts, and production data analytics
Applications
Ideal for advanced recycling facilities requiring precise cutting control, operations processing mixed material streams, noise-restricted urban recycling centers, and companies implementing Industry 4.0 smart factory standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | WS-630S |
| Drive Technology | Servo-Driven Hydraulic |
| Max Cutting Force | 630 Tons (Programmable 200-630T) |
| Blade Length | 1400 mm |
| Shear Height | 300/420 mm |
| Cutting Speed | 3-5 times/min (material-dependent) |
| Processing Capacity | 8-15 tons/hour |
| Servo Motor Power | 110 KW (High-Response AC Servo) |
| Stroke Range | 100-850 mm (Programmable) |
| Force Range | 200-630 Tons (Auto-Adjusting) |
| Noise Level | ≤ 75 dB(A) at 1 meter |
| Pump Type | Servo-Driven Piston Pump x 2 |
| Hydraulic Pressure | ≤ 31.5 MPa (Variable) |
| Control System | PLC Touch Screen + IoT Module + Remote |
| Connectivity | Ethernet, Wi-Fi, 4G (Optional) |
| Cooling System | Servo-Controlled Variable Speed Cooler |
| Power Supply | 380V/3P 50Hz |
| Machine Weight | 37 Tons |
Our Service
- 24/7 technical support with IoT-enabled remote diagnostics
- One year warranty with servo system extended coverage option
- Free operator training on programmable control system
- Predictive maintenance subscription with real-time alerts
- Custom software updates for material profile optimization
Schedule a live demonstration of servo precision cutting technology today.
